Thiết Bi Đo Momen Xoắn Kỷ Thuật Số ( Loại Thông Minh ) : Digital Torque Meters (Intelligent Type)
P/N: W00461

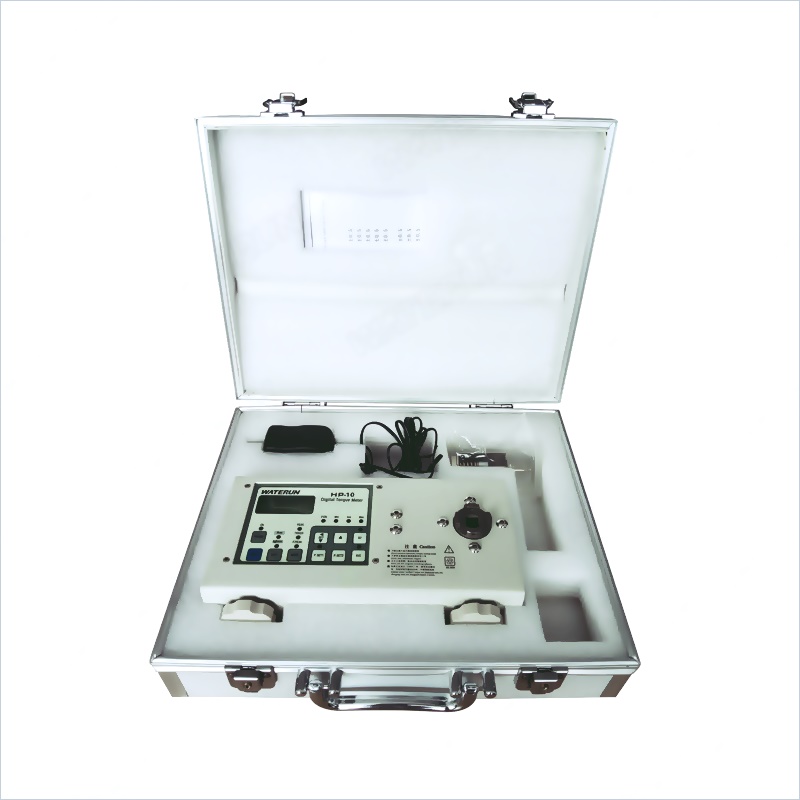

_-2.jpg "Máy Đo Mô – Men Xoắn Kỷ Thuật Số ( Loại Thông Minh ) : Digital Torque Meters (Intelligent Type)")
Model No: HP-100
Xuất Sứ: China
Features:
- Wide measuring range, high accuracy, and the models are complete.
- The attached measruing joint can be run clockwise or counter-clockeise to measure te o/p torque with usual bit and the measured value will be cleared in setting time automatically.
- There are three measuring modes: Peak, Track, F. Peak for easy choice to operate.
- It can calculate and display the maximum and average torque value.
- A bulit-in o/p terminal can be connected to the computer for recalling, editing, and calculating measured datum.
|
Model |
HP-2 |
HP-10 |
HP-20 |
HP-50 |
HP-100 |
|
|
Measurement Range |
Kgf.cm |
0.03-2.0 |
0.15-10.0 |
0.2-20.0 |
0.75-50.0 |
1.5-100.0 |
|
N.m |
0.003-0.2 |
0.15-1.0 |
0.02-2.0 |
0.075-5.0 |
0.15-10.0 |
|
|
Lbt.in |
0.03-1.8 |
0.15-9.0 |
0.20-18.0 |
0.75-45.0 |
1.5-90.0 |
|
|
Accuracy |
within±0.5% |
|||||
