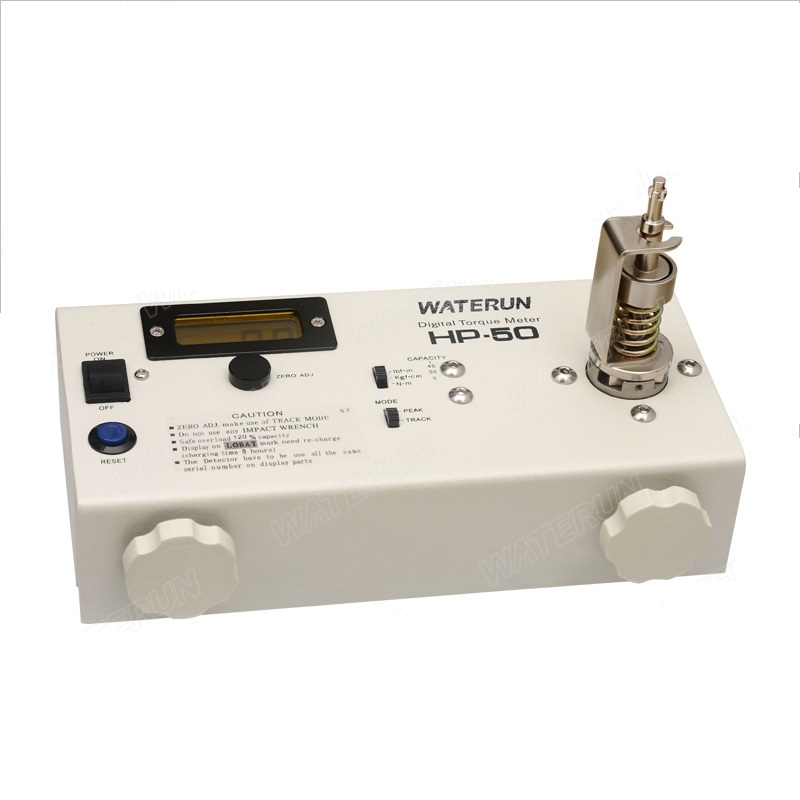

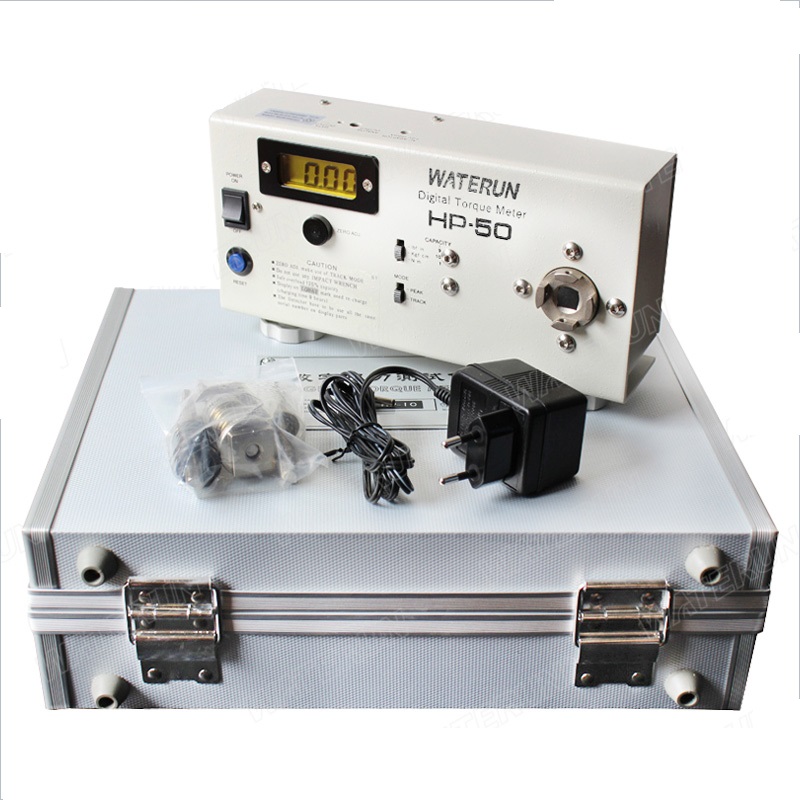

Thiết Bị Đo Momen Xoắn Loại Thường : Digital Torque Meters (Normal Type)
P/N: W00018
Xuất Sứ: China
Model No: HP-10 / HP-50 / HP-100
Features:
1.For measuring the torque setting of electric screwdrivers, torque drivers and torque wrenches; for many other applications for
which jig tools are devised.
2.For collecting data on holes diameters prepared for tapping screws;
3.For controlling bottle cap fastening;
4.For testing breakdown of small parts;
5.For quality control of plastic screws and parts.
|
Model |
HP-10 |
HP-50 |
HP-100 |
|
|
Measurement Range |
Kgf.cm |
0.15-10.00 |
1.5-50 |
1.5-100 |
|
N.m |
0.015-1.0 |
0.15-5 |
0.15-10 |
|
|
Lbt.in |
0.15-9.00 |
1.5-45 |
1.5-90 |
|
|
Accuracy |
within±0.5% |
|||
|
Power Source |
1.2V Nicd cell x 5 |
|||
|
Recharging Time |
8 hours with exclusIve charger |
|||
|
Continuous use at full charge |
30 hours |
|||
|
Dimensions (mm) |
230 (W) x 123 (D) x 65 (H) |
|||
|
Battery Life |
chargeable for 300 times or more |
|||
|
Weight |
1.8 kg |
|||
|
Exclusive Charger |
Input: AC220-240V Output: DC7.2V,120mA |
|||
